Sensaphone Web600 Web-Based Monitoring

Wine Storage Temperature & Humidity Management System

Web-based monitoring system for temperature and humidity

Fully automatic data log and event log for data analysis

Email notification when conditions exceed normal values

Backup battery

Simple and cost effective solution for wine storage

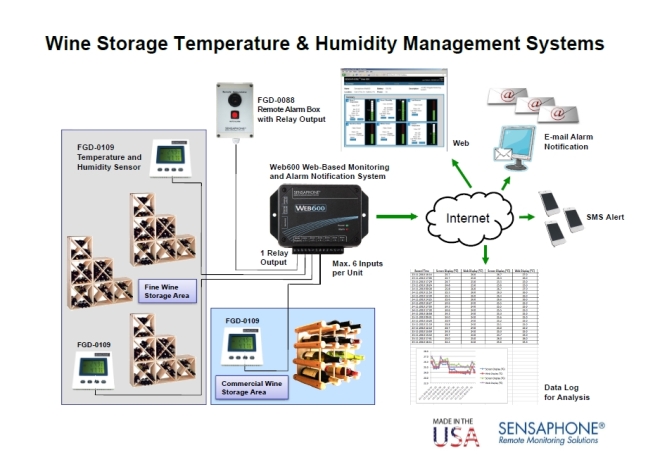

Schematic Diagram

(Please click the image to enlarge)

Sales Hotline: +852 2780 5123

Certification Requirements for Wine Storage Management System

Specifications:

	Fine Wine	Commercial Wine
Min. storage temperature	11°C	----
Max. storage temperature	17°C	22°C
Max. daily fluctuation range	3°C	5°C
Max. annual fluctuation range	5°C	10°C
Humidity as a running average	55% - 80%	>50%
Regular maintenance shall be carried out on all equipments (refrigerators, humidifiers etc)	Yes	Yes
Calibration of conditional controllers and sensors shall be carried out	Once/year	Once/3 years
Accuracy of temperature sensors	±0.5°C	±1°C
Accuracy of humidity sensors	±5%	±5%

Downloads

	Download
Sensaphone Web600 Brochure	(8.66MB)
FGD-0109 Temperature and Humidity Sensor Datasheet	(467KB)
