TraceTek Alarm Modules

TraceTek Alarm Modules: Digital or Analog?

Don't be confused by claims to the contrary: All sensing is done
at the analog level by measuring voltage, current and resistance.
All modern systems convert the analog values to digital values
then use digital telemetry to bring the measurement values to the
alarm panel. TraceTek's combination of analog measurement
and digital technology, permits designers to tailor their leak
detection system to larger floor areas, multiple levels and smaller
discontinuous areas with ease. As all SIMs speak Modbus,
Johnson Controls' N2 Open protocol and allow for easy
conversion to BACnet, TraceTek leak detection can be a
plug-and-play addition to many building management systems.

TTC-1

The TraceTek TTC module offers a low cost option for liquid leak detection. It is designed for use with any TraceTek sensor, and can be integrated into a variety of monitoring systems.

TTDM-128
The TTDM-128 unit provides alarm and location functions for up to 5000 feet (1500 m) of directly connected sensor and/or up to 127 external TTSIM-1 units.
TTSIM-1
The TTSIM-1 Sensor Interface Module monitors up to 5000 feet (1500 m) of TraceTek sensing cable.
TTSIM-1A
The TTSIM-1A Sensor Interface Module monitors up to 500 feet (150 m) of TraceTek sensing cable, and provides programmable alarm relay contacts and front panel LED status indication.
TTSIM-2
The TTSIM-2 Sensor Interface Module monitors up to 500 feet (150 m) of TraceTek sensing cable, and provides programmable alarm relay contacts, front panel LED status indication and LCD leak location display.

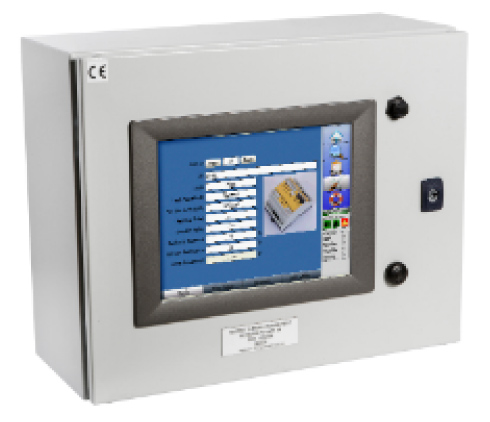

 TT-TS12
The TT-TS12 Touch Screen Panel provides a graphic user interface to manage and display information from a network of up to 250 external TraceTek leak detection circuits.
